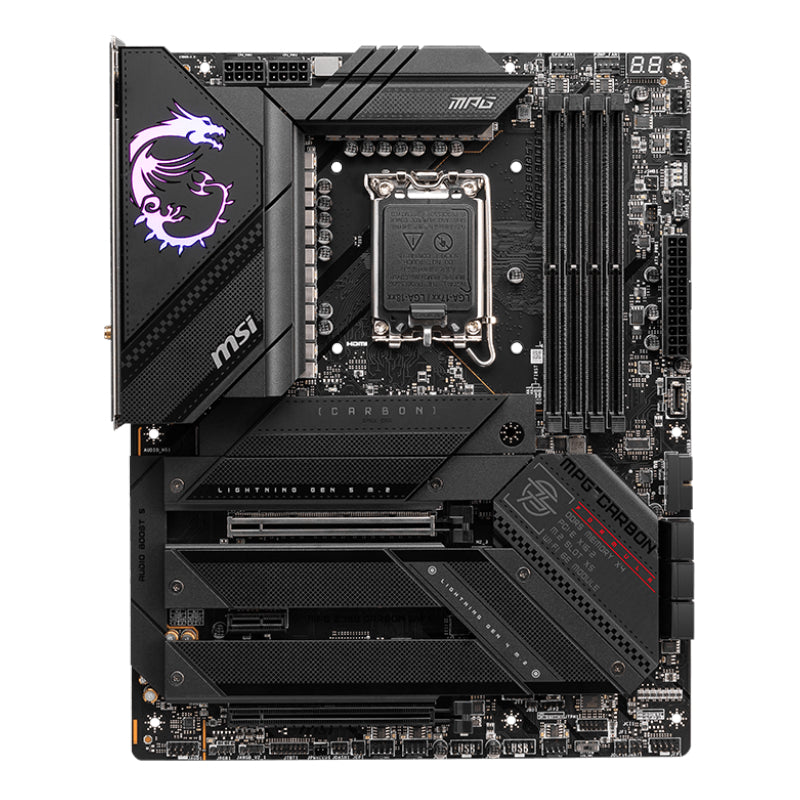

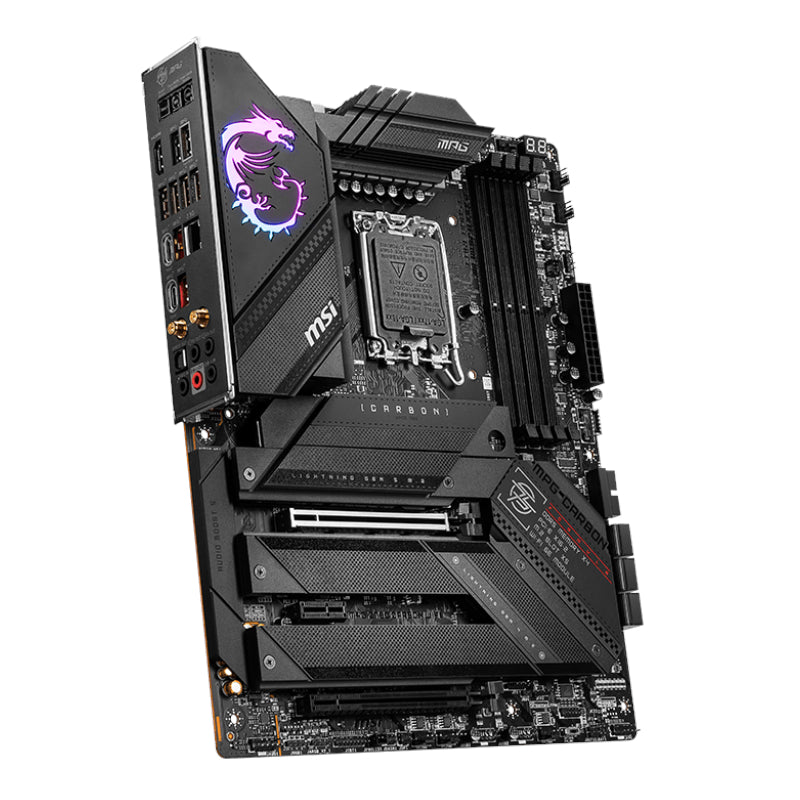

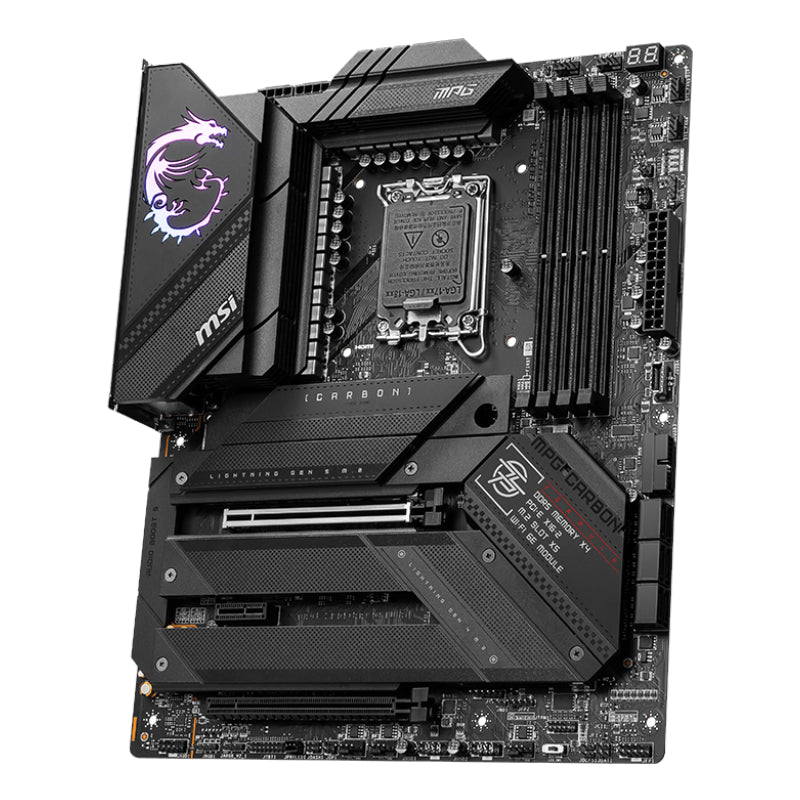

MSI MPG Z790 CARBON WIFI DDR5 LGA1700 ATX Gaming Motherboard

The MSI MPG Z790 CARBON WIFI employs a carbon black colour scheme and RGB
lighting to show off different personalities and identities. The MPG series
brings out fashionable products by showing extremely unique styles and
expressing a conceited attitude towards the challenge of the gaming world. With
extraordinary performance and style, the MPG series defines the future of gaming
fashion. The Z790 offers a huge step of DDR performance enhancement with the
latest DDR5 memory. Combines with a dedicated SMT welding process and MSI Memory
Boost technology, MPG Z790 CARBON WIFI is ready to deliver world-class memory
performance.

MSI motherboards let you manage speeds and temperatures for all your system and
CPU fans in BIOS and software with a simplified graphical interface. You can
also set up to 4 temperature targets, which will adjust the fan speeds
automatically. Unleash and sustain maximum performance with a flagship VRM
design built with a total of Direct 19+1+1 Power Phases. Combining dual power
connectors and 105A Smart Power Stage, MPG Z790 CARBON WIFI is ready for the
challenge of high-end processors.

MSI MPG series motherboards support all the latest storage standards, which
allows users to connect any ultra-fast storage device. Start games faster, load
levels faster and have a real advantage over your enemies. Using USB 3.2 devices
has never been faster! MPG Z790 series motherboards offer a wide variety of
options to connect and boost your USB devices, offering never before seen USB
speeds up to 20Gb/s when connecting the Rear USB Type-C.

Designed to support the most popular All-In-One & customized water cooling
solutions on the market. A dedicated water pump PIN header supports up to 3 amp,
giving you full control of the water pump speed. A clearly marked
‘keep-out-zone’ allows for easy and safe installation and a perfect fit.

FEATURES:

* Supports 13th /12th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA
1700 socket
* Supports DDR5 Memory, up to 7600+(OC) MHz
* Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, USB
3.2 Gen 2x2
* Enhanced Power Design: Direct 19+1+1 phases power, Core Boost, Memory Boost
* Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal
pads rated for 7W/mk
* Additional choke thermal pads and M.2 Shield Frozr are built for
high-performance systems
* 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for
professional and multimedia use
* Audio Boost 5: Reward your ears with the studio-grade sound quality for the
most immersive gaming experience
* High-Quality PCB: 8-layer PCB made by server-grade level material
* Pre-installed I/O Shield: Better EMI protection and more convenience for
installation

SPECIFICATIONS:

* Socket: 1700
* CPU (Max Support): Supports 12th/13th Gen Intel® Core™ Processors, Pentium®
Gold and Celeron® Processors
* Chipset: Intel® Z790 Chipset
* DDR5 Memory: 7600+(OC)/ 7400 (OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/
6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/
5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
* Memory Channel: Dual
* DIMM Slots: 4
* Max Memory (GB): 128
* PCI-E x16: 2
* PCI-E X1: 1
* SATAIII: 6
* M.2 Slot: 5
* RAID: 0/1/5/10
* LAN: 1x Intel® 2.5Gbps LAN
* Wireless/Bluetooth: Intel® Wi-Fi 6E

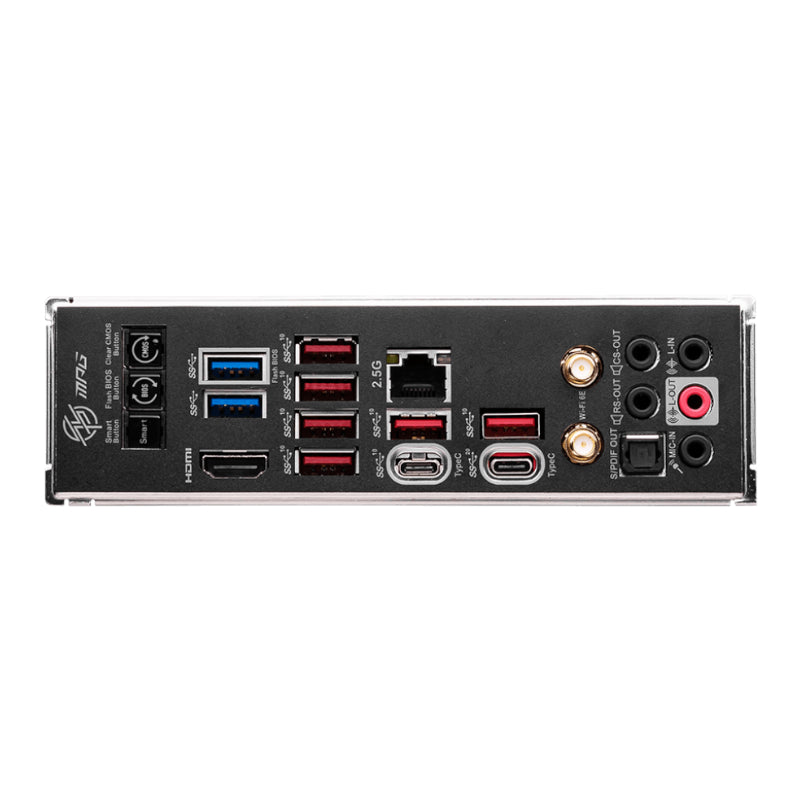

* USB 3.2 ports (Front): 1(Gen 2x2, Type-C), 2(Gen 1, Type A)
* USB 3.2 ports (Rear): 1(Gen 2×2, Type-C), 1(Gen 2, Type-C), 6(Gen 2, Type A),
2(Gen 1, Type A)
* USB 2.0 ports (Front): 4
* Audio ports (Rear): Realtek® ALC4080 Codec
* HDMI: 1
* DirectX: 12
* Form Factor: ATX
* Operating System: Support for Windows® 11 64-bit, Windows® 10 64-bit

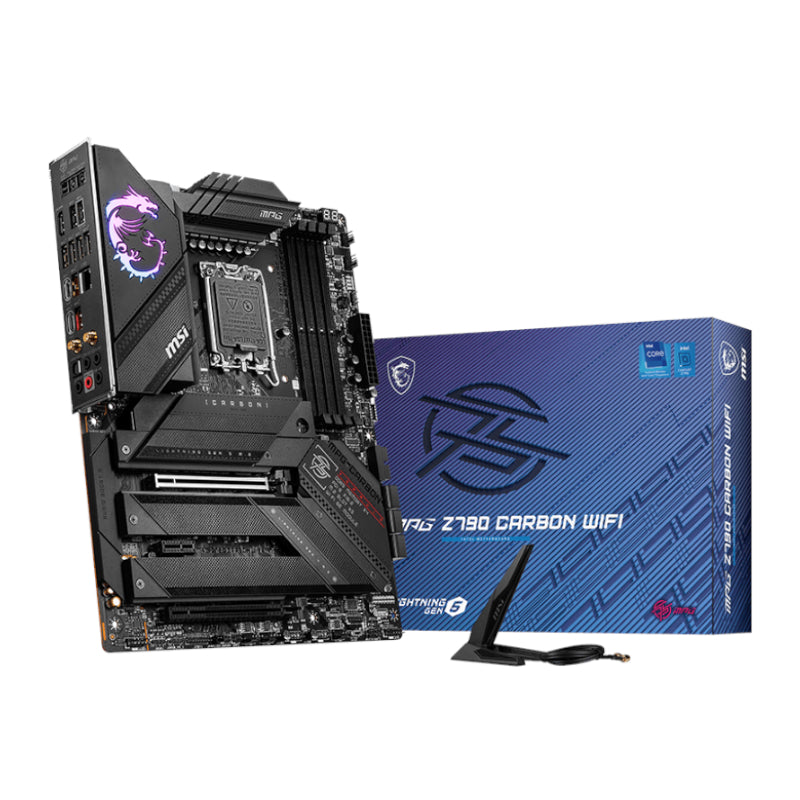

WHAT’S IN THE BOX:

* MSI MPG Z790 CARBON WIFI DDR4 LGA1700 ATX Gaming Motherboard – Black x1
* Wi-Fi Antenna x1
* EZ M.2 Clips x4
* USB Drive x1
* SATA Cables x2
* JARGB Extension Cable x1
* JRGB Extension Cable(1 to 2) x1
* Cable Stickers x1
* Quick Installation Guide x1
