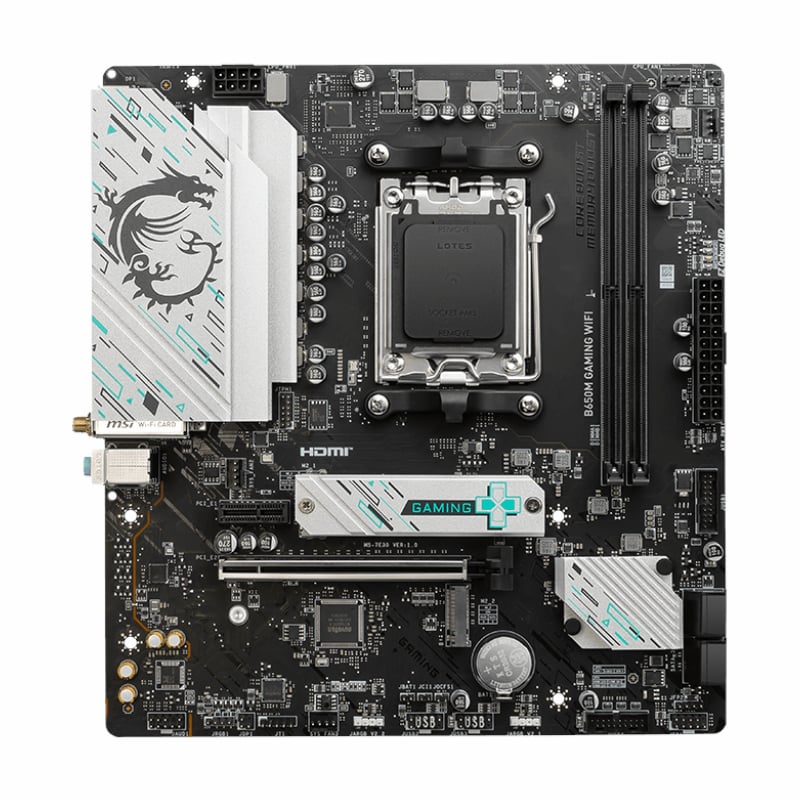

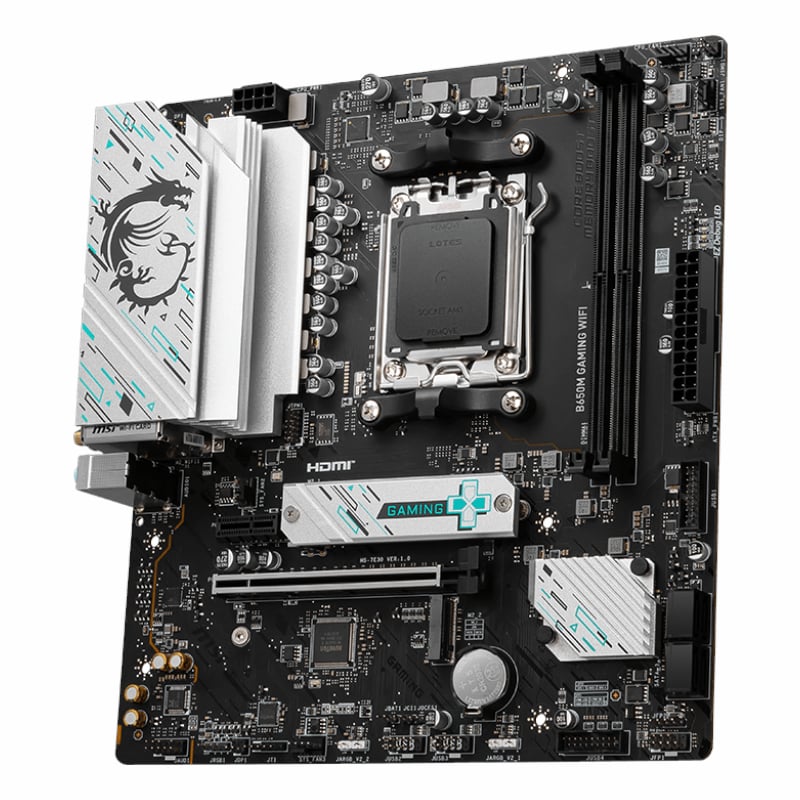

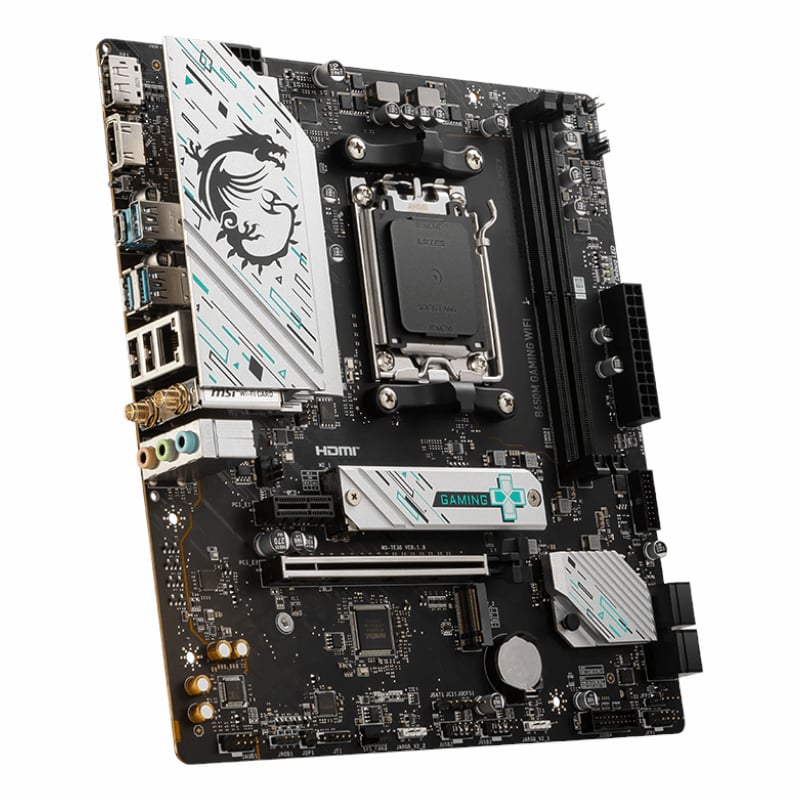

MSI B650M GAMING WIFI AMD AM5 mATX Gaming Motherboard

B650M GAMING WIFI is designed with tonnes of connectivity, flexible tools, and a
convenient Wi-Fi solution with a DDR5 memory version for gamers who want it all.

This is a huge step in DDR performance enhancement with the latest DDR5 memory.
With a dedicated SMT welding process and MSI Memory Boost technology, B650M
GAMING WIFI is ready to deliver world-class memory performance. The advanced SMT
(Surface Mount Technology) welding process reduces the defect rate of slot
solder joints, electromagnetism, and interference. With exclusive Memory Boost
technology, MSI motherboards deliver a clean and pure high-frequency DDR5
signal.

Core Boost technology utilises MSI’s premium layout and optimised power design
to deliver CPU current with increased speed and precision. The software supports
multi-core CPUs and optimises CPU overclocking. MSI B650M GAMING WIFI series
motherboards support all the latest storage standards, which allows users to
connect any ultra-fast storage device. Start games faster, load levels faster,
and have a real advantage over your enemies. MSI B650M GAMING WIFI series
motherboards support all the latest storage standards, which allows users to
connect any ultra-fast storage device. Start games faster, load levels faster
and have a real advantage over your enemies

FEATURES:

* Supports AMD RyzenTM 8000 and 7000 Series Desktop Processors
* Supports DDR5 Memory, up to 7800+ (OC) MHz
* Core Boost : With premium layout and digital power design to support more
cores and provide better performance
* Memory Boost: Advanced technology to deliver pure data signals for the best
performance, stability and compatibility
* Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen4 M.2
* Steel Armour: Protecting VGA cards against bending and EMI for better
performance, stability and strength
* AUDIO Boom: Reward your ears with studio-grade sound quality for the most
immersive gaming experience
* High-Quality PCB: 6-layer PCB made by 2 oz. thickened copper

SPECIFICATIONS:

* Socket: AM5
* CPU Support: Supports AMD RyzenTM 8000/7000 Series Desktop Processors
* Chipset: AMD B650
* DDR5 Memory: DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/
6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/
5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
* Max. overclocking frequency: 1DPC 1R Max speed up to 7800+ MHz; 1DPC 2R Max
speed up to 6400+ MHz
* Memory Channel: Dual-Channel DDR5
* DIMM Slots: 2
* Max Memory (GB): 128GB
* PCI-E x16: 1
* PCI-E x1: 2
* SATA 6G: 4
* M.2 Slot: 2
* RAID: 0/1/10
* LAN: Realtek® 8125BG 2.5G LAN
* TPM pin header (Support TPM 2.0): 1

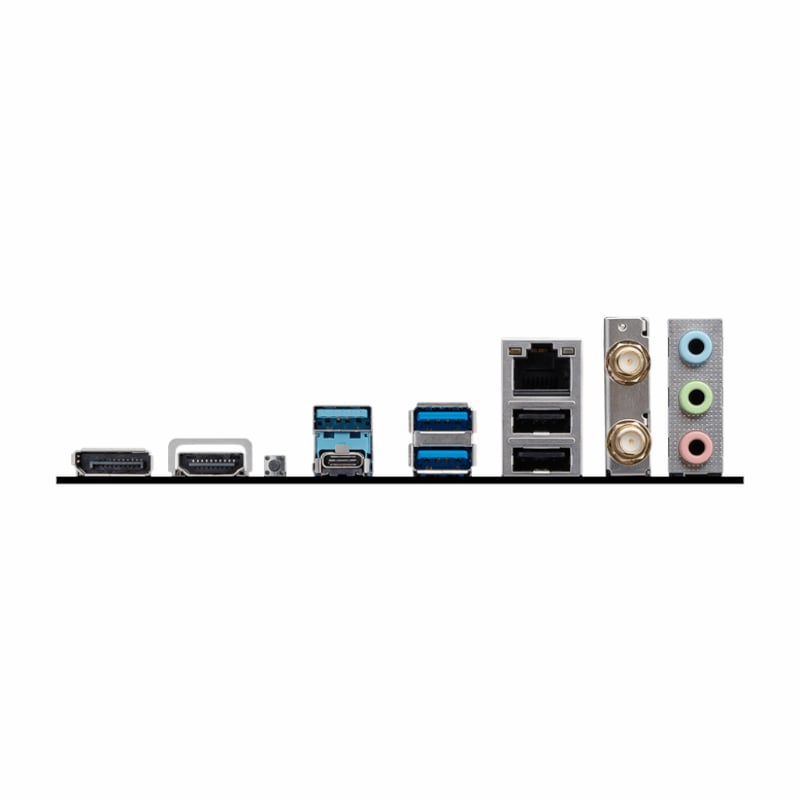

* USB 2.0 (Rear): 2
* USB 2.0 (Front): 4
* USB 5Gbps Type A (Rear): 3
* USB 5Gbps Type C (Rear): 1
* USB 5Gbps Type A (Front): 4
* Audio ports (Rear): 7.1-Channel High Definition Audio, Realtek® RTL8125BG
2.5Gbps LAN
* Wifi: AMD Wi-Fi 6E
* Bluetooth: 5.3
* HDMI: 1
* DisplayPort: 1
* DirectX: 12
* Form Factor: mATX
* Operating System: Support for Windows® 11 64-bit and Windows® 10 64-bit

WHAT’S IN THE BOX?

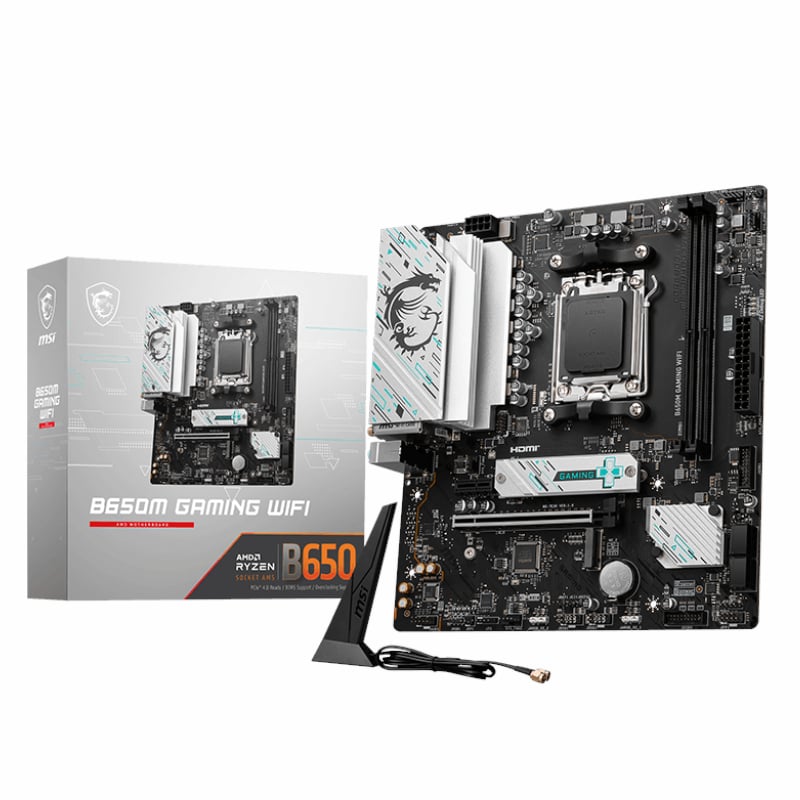

* MSI B650M Gaming Wifi AMD AM5 mATX Gaming Motherboard, Black x1
* I/O Shield x1
* SATA Cable x1
* EZ M.2 Clips x1
* Wifi Antenna x1
* Quick Install Guide x1
