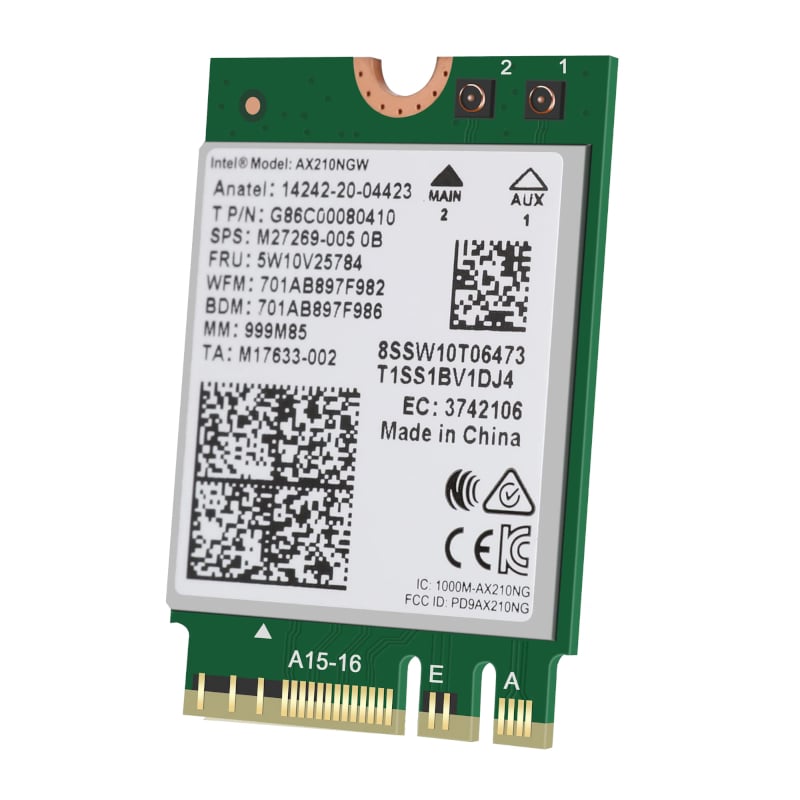

Intel AX210 M.2 Wifi Card Module

The Intel® Wi-Fi 6E AX210 (Gig+) adapter is designed to support Wi-Fi 6E
technology and related Wi-Fi Alliance certification. The product supports
dual-stream Wi-Fi in the 2.4GHz, 5GHz and 6GHz bands as well as Bluetooth® 5.3.
It also supports Wi-Fi 6 R2 features, including UL MU-MIMO. These new features
maximize the benefits of Wi-Fi 6, including Gigabit speed, ultra-low latencies,
and enhanced reliability benefits across new radio frequencies exclusive to
Wi-Fi 6E devices, and deliver a significant improvement in user experience in
dense deployments. Combined with Intel® Core™ processors and exceptional Intel
wireless innovations, the Intel® Wi-Fi 6E AX210 module can dramatically improve
your connected experience at home, work, or on the go.

Intel® Wi-Fi 6E AX210 module supports legacy Wi-Fi 4, 5, 6, and Wi-Fi 6E and is
designed to support Wi-Fi 6 R2 features. By implementing Wi-Fi 6E technology
supporting the 6GHz band that includes 1200MHz of new contiguous spectrum (>2x
compared to 5GHz) with more Gigabit Wi-Fi options and exclusivity to Wi-Fi 6
products, the Intel® Wi-Fi 6E AX210 module maximises Wi-Fi 6 and Gigabit Wi-Fi
benefits, enabling greater network flexibility, faster downloads, sharing, and
backups, as well as reduced latency and improved reliability.

When using Wi-Fi 6 technology with 1024QAM and 160MHz channels, the Intel® Wi-Fi
6 AX210 module can deliver nearly 3x higher peak data rates (up to 2.4Gbps) and
up to 4x capacity improvement in dense or congested environments compared to
Wi-Fi 5.

FEATURES:

* Greater Network Flexibility
* Faster Speed
* Reduced Latency
* Wi-Fi 6E Tri-Band 2x2 160MHz
* Bluetooth® 5.2
* Microsoft Windows
* Form Factors (M.2 2230 and 1216)

SPECIFICATIONS:

* Connector Interface: M.2: PCIe*, USB
* Wi-Fi Alliance: Wi-Fi CERTIFIED 6 with Wi-Fi 6E, Wi-Fi CERTIFIED  a/b/g/n/ac,
WMM , WMM -Power Save, WPA3 , PMF , Wi-Fi Direct , Wi-Fi Agile Multiband,
Wi-Fi Location R2 HW readiness
* IEEE WLAN Standard: IEEE 802.11-2020 and select amendments (selected feature
coverage), IEEE 802.11a, b, d, e, g, h, i, k, n, r, u, v, w, ac, ax; Fine
Timing Measurement based on 802.11-2016,  802.11az HW readiness
* Bluetooth®: Bluetooth® 5.2
* Security Methods: WPA3 personal and enterprise including WPA2 transition mode
* Authentication Protocols: 802.1X EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0-MSCHAPv2
(EAP-SIM, EAP-AKA, EAP-AKA’)
* Encryption: 128-bit AES-CCMP, 256-bit AES-GCMP
* Operating Temperature (Adapter Shield): 0°C to +80°C
* Humidity Non-Operating: 50% to 90% RH non-condensing (at temperatures of 25°C
to 35°C)
* Operating Systems: Microsoft Windows 11, Microsoft Windows 10, Linux
* Dimensions: M.2 2230: 22mm x 30mm x 2.4mm [1.5mm Max (Top Side)/ 0.1mm Max
(Bottom Side)], M.2 1216: 12mm x 16mm x 1.7 (+-0.1) mm
* Weight: M.2 2230: 2.83 +/– 0.3 g, M.2 1216: 0.67 +/– 0.1 g

WHAT'S IN THE BOX:

* Intel® Wi-Fi 6E AX210 M.2 WIFI module - Green x1
