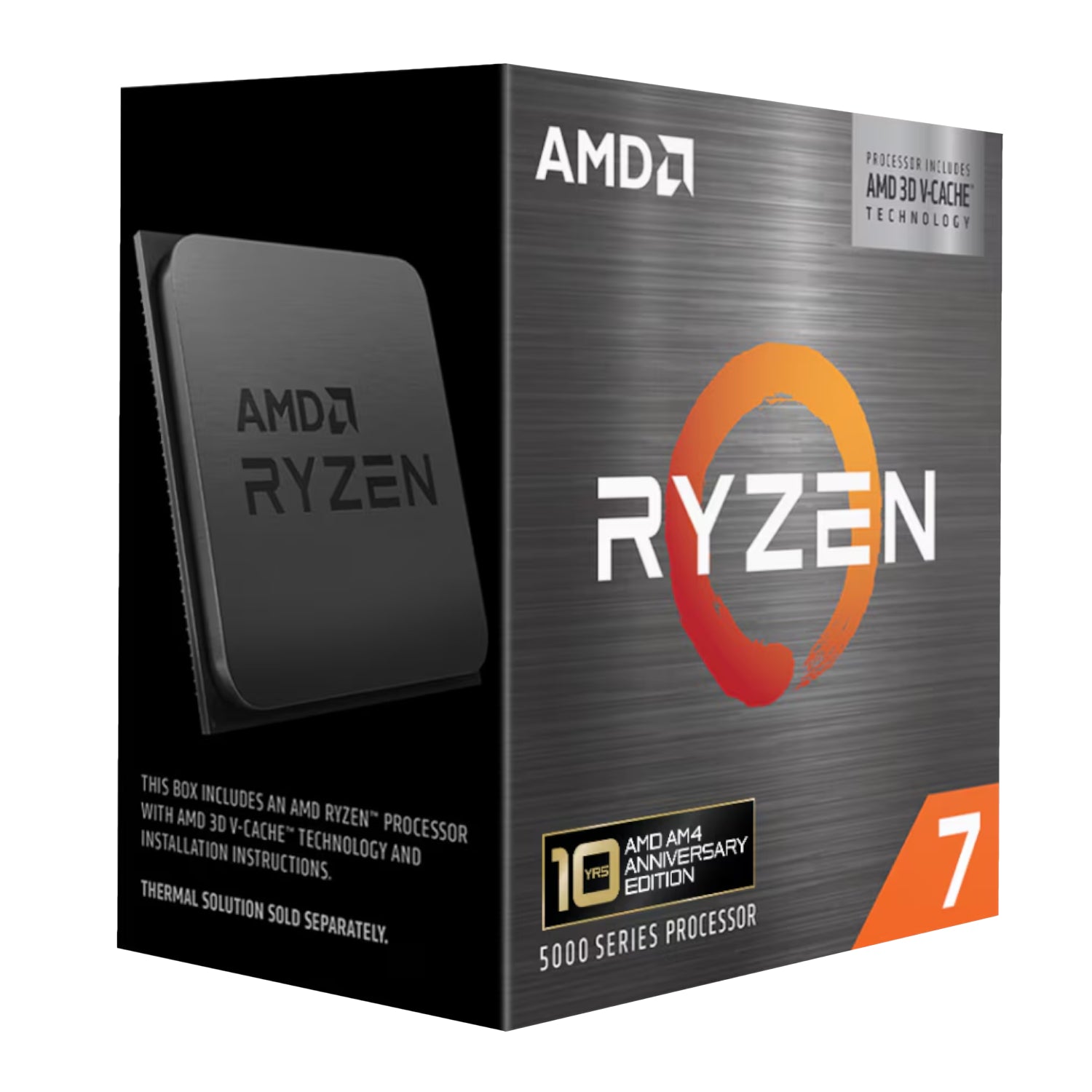

AMD Ryzen™ 7 5800X3D 8-Core 3.4GHz AM4 CPU

AMD Ryzen™ 7 5800X3D | 8 Cores / 16 Threads | 3.4GHz Base, up to 4.5GHz Boost | 96MB L3 (3D V-Cache™) | Socket AM4 | DDR4 | PCIe 4.0

Quick Specs

• Game at the top of the AM4 platform with AMD’s 3D V-Cache™ technology


• Power through with 8 Zen 3 cores and 16 threads


• Boost up to 4.5 GHz when your games and apps demand it


• Tap into a massive 96MB of L3 cache for higher frame rates


• Drop straight into existing AM4 boards with DDR4 and PCIe 4.0

The Ultimate AM4 Gaming Processor

The AMD Ryzen™ 7 5800X3D is the ultimate gaming processor for the DDR4 platform, and it’s built around AMD’s game-changing 3D V-Cache™ technology. By stacking a huge 96MB of L3 cache onto its 8-core, 16-thread Zen 3 design, it feeds the CPU more game data closer to the cores — delivering higher frame rates in the titles that matter to gamers across South Africa, without needing a brand-new platform.

Zen 3 Performance, Ready to Boost

Built on the proven Zen 3 architecture, the 5800X3D runs at a 3.4 GHz base clock and boosts up to 4.5 GHz with Precision Boost 2, so it stays responsive whether you’re gaming, streaming or tackling everyday productivity. With 8 cores and Simultaneous Multithreading (SMT) for 16 threads, plus a 512KB L1 / 4MB L2 cache hierarchy, it has the muscle for serious multitasking as well as high-refresh gaming.

A Smart, Easy Upgrade for AM4 Builds

One of the 5800X3D’s biggest strengths is its socket AM4 compatibility. It works with X570, X470, B550, B450 and A520 chipsets, making it a superb drop-in upgrade for existing AM4 systems — often with just a BIOS update. It supports dual-channel DDR4 up to 128GB (DDR4-3200), PCIe® 4.0, and even ECC memory with compatible motherboards, so you get modern connectivity without the cost of a full platform change.

Built for Modern Gaming and Cool Operation

Supporting AMD 3D V-Cache™, Windows® 11 gaming and AMD Ryzen™ VR-Ready Premium, the 5800X3D is engineered for today’s most demanding experiences. It’s manufactured on TSMC’s 7nm process with a 105W default TDP and a 90°C maximum operating temperature. No cooler is included in the box, and AMD recommends a liquid cooler for optimal performance — so pair it with a capable AIO to keep it running at its best.

FEATURES:

• AMD 3D V-Cache™ technology with a massive 96MB L3 cache for higher gaming frame rates


• 8 Zen 3 cores and 16 threads (Simultaneous Multithreading)


• 3.4 GHz base clock, boosting up to 4.5 GHz with Precision Boost 2


• Socket AM4 compatibility with X570, X470, B550, B450 and A520 chipsets


• Dual-channel DDR4 support up to 128GB (DDR4-3200), with ECC support on compatible boards


• PCIe® 4.0 connectivity with NVMe boot and RAID 0/1/10 support


• Supports Windows® 11 Gaming and AMD Ryzen™ VR-Ready Premium


• Built on TSMC 7nm FinFET process technology


• Unlocked for tuning, with a broad set of supported instruction extensions


• Cooler not included; liquid cooler recommended for optimal performance

SPECIFICATIONS:

• Name: AMD Ryzen™ 7 5800X3D


• Family: Ryzen 7 (Ryzen 5000 Series)


• Processor Architecture: Zen 3


• Former Codename: Vermeer


• CPU Socket: AM4


• # of CPU Cores: 8


• # of Threads: 16


• Multithreading (SMT): Yes


• Base Clock: 3.4 GHz


• Max. Boost Clock: Up to 4.5 GHz


• CPU Boost Technology: Precision Boost 2


• L1 Cache: 512 KB


• L2 Cache: 4 MB


• L3 Cache: 96 MB


• Default TDP: 105W


• Max. Operating Temperature (Tjmax): 90°C


• Supporting Chipsets: X570, X470, B550, B450, A520


• Instruction Set: x86-64


• System Memory Type: DDR4


• Memory Channels: 2


• Max. Memory: 128 GB


• Max. Memory Speed: DDR4-3200 (2x1R / 2x2R)


• ECC Support: Yes (requires motherboard support)


• PCI Express® Version: PCIe® 4.0


• Native USB: 4 x USB 3.2 Gen 2 (10 Gbps)


• Native SATA Ports: 2


• Processor Technology (CPU Cores): TSMC 7nm FinFET


• Graphics: Discrete graphics card required


• Thermal Solution (PIB): Not included


• Recommended Cooler: Liquid cooler recommended for optimal performance


• Operating System Support: Windows 11 / Windows 10 (64-bit), RHEL x86 64-bit, Ubuntu x86 64-bit

WHAT’S IN THE BOX:

• AMD Ryzen™ 7 5800X3D Gaming Processor x1

Why AMD?

AMD Ryzen™ processors have earned a loyal following among gamers and creators worldwide for delivering exceptional performance and value. The Ryzen™ 7 5800X3D is a standout — a pioneering 3D V-Cache™ chip that remains one of the best gaming CPUs you can drop into an AM4 board. For South African gamers looking to get the most from an existing platform, it’s a smart, high-impact upgrade backed by AMD’s reputation for quality.
