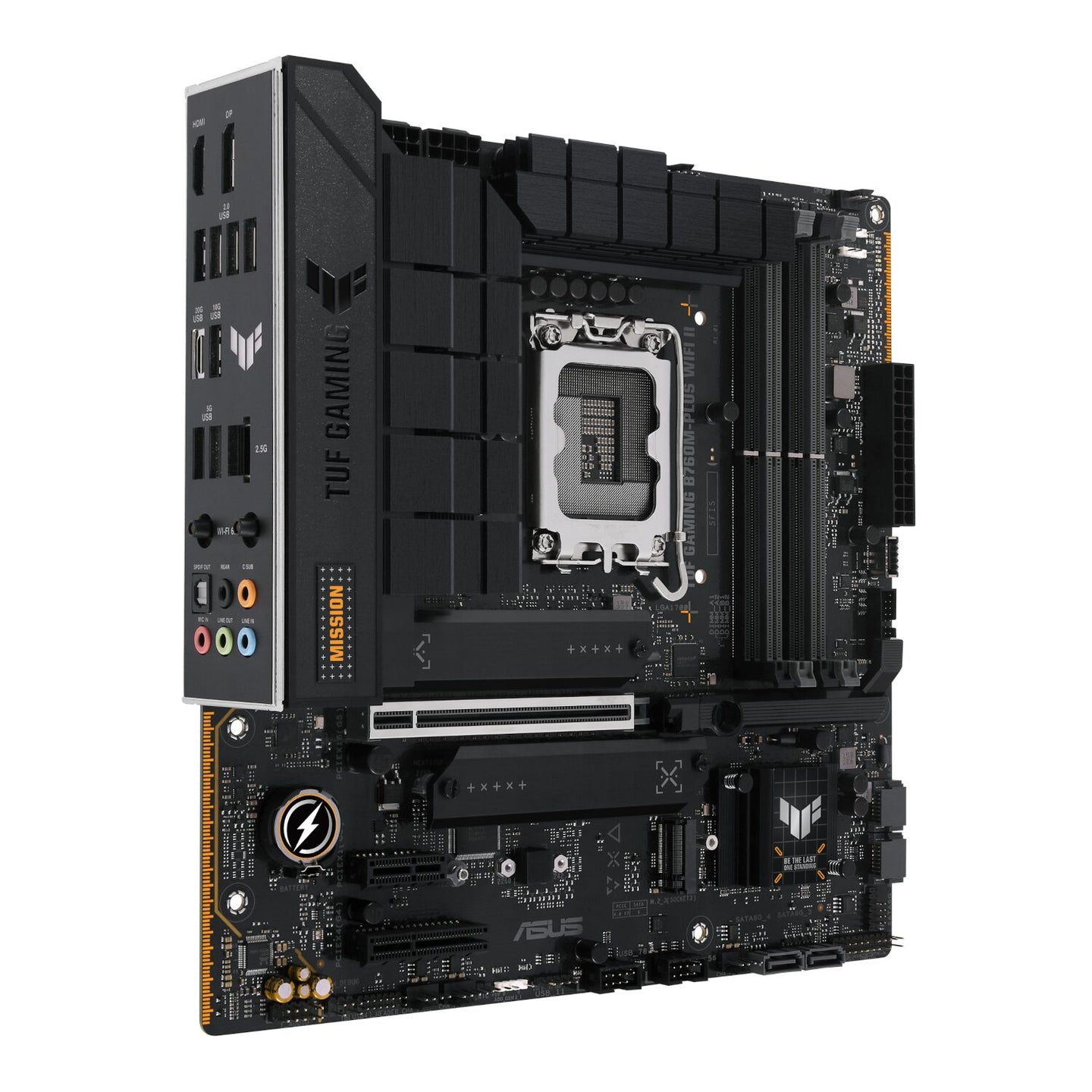

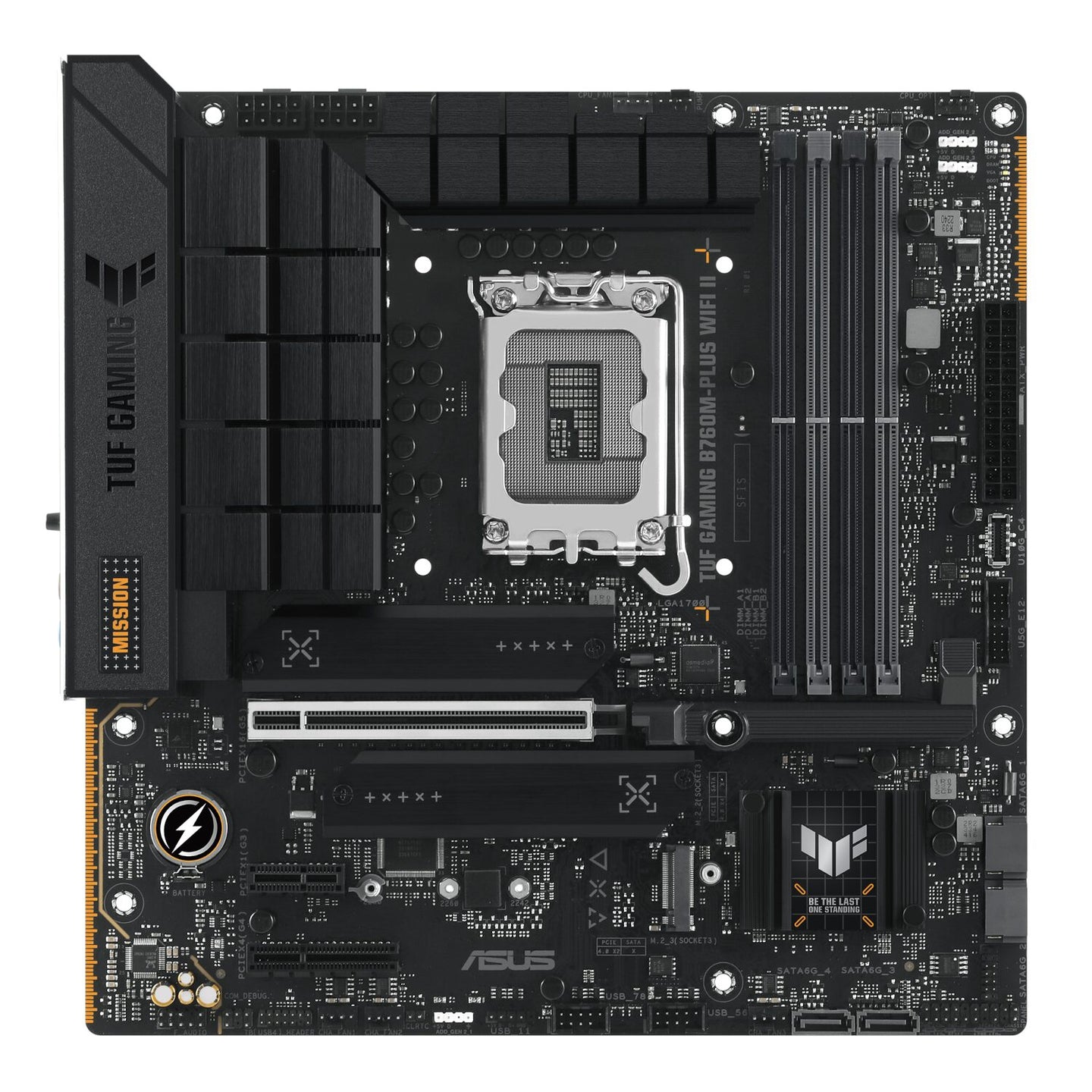

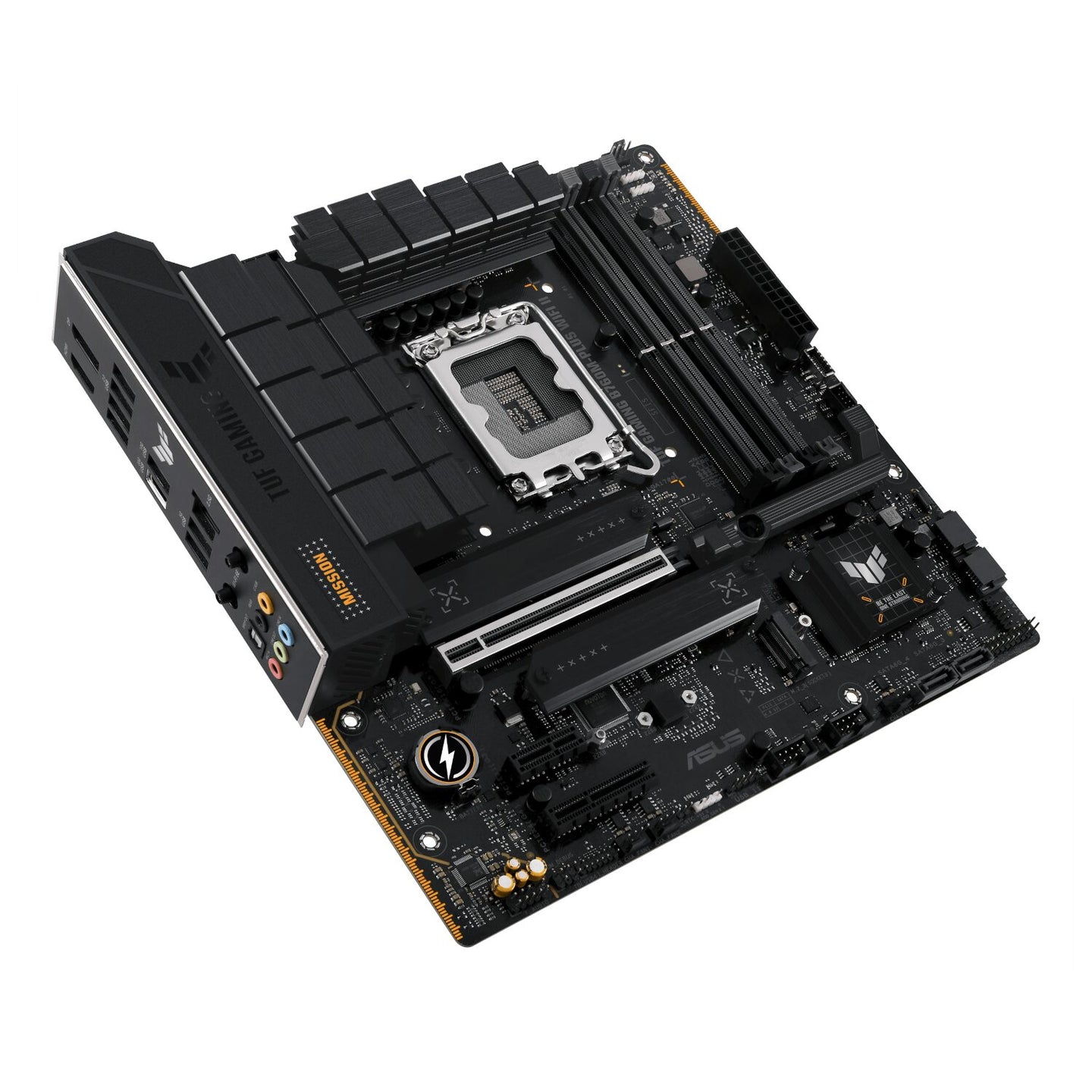

Asus TUF Gaming B760M-PLUS WIFI II - mATX Motherboard

The Asus TUF Gaming B760M-PLUS WIFI II is a robust micro-ATX Motherboard that delivers exceptional durability, advanced performance, and rock-solid stability for 14th,13th and 12th Gen Intel® Core™ processors. Engineered with military-grade components and TUF-tested reliability, it caters to competitive gamers, PC builders, and performance-driven users seeking a balance between next-gen features and dependable construction.

At its core, the Asus TUF Gaming B760M-PLUS Motherboard features a 12+1 DrMOS power stage VRM architecture, enlarged VRM heatsinks, and a six-layer PCB design to ensure stable power delivery under high-load conditions. It supports DDR5 memory for faster data throughput, lower power consumption, and superior multitasking capabilities. PCIe® 5.0 support unlocks future-ready bandwidth for the latest GPUs, while dual PCIe 4.0 M.2 slots with M.2 Q-Latch simplify high-speed SSD installation.

Seamless connectivity is a cornerstone with integrated Wi-Fi 6E ensuring low-latency wireless networking across the 6 GHz spectrum, while the Intel® 2.5 Gb Ethernet port offers ultra-fast wired connections. Comprehensive cooling controls include hybrid fan headers, AI-powered Fan Xpert 2+ software, and precision thermal monitoring to maintain optimal system performance.

Built for DIY ease, it includes a pre-mounted I/O shield, Q-LED diagnostic indicators, and ASUS SafeSlot Core+ for reinforced GPU retention. The rugged design aesthetic is complemented by support for ASUS Aura Sync RGB lighting, allowing users to personalise builds with unified lighting control. Whether you’re building a compact gaming rig or a high-efficiency workstation, the Asus TUF Gaming B760M-PLUS WIFI II - mATX Motherboard delivers a future-proof platform tailored for speed, stability, and endurance.

FEATURES:

• Intel® LGA1700 socket supports 14h & 13th Gen Intel® Core™, 12th Core, Pentium® Gold, and Celeron® processors


• 12+1 DrMOS power stages and durable components ensure reliable, stable performance for demanding workloads.


• DDR5 memory supports advanced multitasking and gaming responsiveness


• Next-gen PCIe® 5.0 support provides ultra-high bandwidth for the latest GPUs, enhancing visual performance and data throughput


• Dual PCIe 4.0 M.2 slots support NVMe SSDs for ultra-fast game and application loading times


• Wi-Fi 6E connectivity delivers high-speed, low-latency wireless networking across the 6 GHz band


• Intel® 2.5Gb Ethernet provides high-speed wired networking ideal for streaming, competitive gaming, and heavy data transfers


• Enlarged VRM heatsinks, hybrid fan headers, and Fan Xpert 2+ software maintain thermal efficiency under load


• Military-grade components and six-layer PCB ensure long-term reliability and enhanced power integrity


• DIY-friendly design includes pre-mounted I/O shield, M.2 Q-Latch, SafeSlot Core+, and Q-LED indicators


• ASUS Aura Sync RGB support offers customisable lighting synchronisation with compatible components


• Armoury Crate centralised software for performance tuning, RGB control, and real-time system monitoring

SPECIFICATIONS:

• CPU:


• Chipset: Intel® B760 Chipset


• CPU Compatibility: Supports Intel® 14th,13th & 12th Gen Core™, Pentium® Gold and Celeron® Processors


• CPU Socket: LGA1700


• Memory Support:



  • 4 x DIMM slots, up to 192GB total


  • DDR5 7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 MHz


  • Dual-channel architecture


  • Intel® Extreme Memory Profile (XMP) support






• Graphics:



  • 1 x DisplayPort


  • 1 x HDMI™port






• Expansion Slots:



  • Intel® CoreTM Processors (14th & 13th & 12th Gen)*



    • 1 x PCIe 5.0 x16 slot






  • Intel® B760 Chipset



    • 1 x PCIe 4.0 x4 slot


    • 1 x PCIe 3.0 x1 slot










• Storage:


• Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports


• Intel® CoreTM Processors (14th & 13th & 12th Gen)



  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)






• Intel® B760 Chipset



  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)


  • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)


  • 4 x SATA 6Gb/s ports






• Ethernet: 1 x Realtek 2.5Gb ethernet TUF LANGuard


• Wireless & Bluetooth:



  • 2x2 Wi-Fi 6E (802.11ax)


  • Bluetooth® v5.3 (2.4/5/6GHz)






• USB:



  • Rear USB (Total 8 ports)



    • 1 x USB 20Gbps port (1 x USB Type-C®)


    • 1 x USB 10Gbps port (1 x Type-A)


    • 2 x USB 5Gbps ports (2 x Type-A)


    • 4 x USB 2.0 ports (4 x Type-A)






  • Front USB (Total 8 ports)



    • 1 x USB 10Gbps connector (supports USB Type-C®)


    • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports


    • 3 x USB 2.0 headers support 5 additional USB 2.0 ports










• Audio:



  • Realtek 7.1 Surround Sound High Definition Audio CODEC



    • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking


    • Supports up to 24-bit/192 kHz playback






  • Audio Features



    • Audio Shielding


    • Rear optical S/PDIF out port


    • Premium audio capacitors


    • Dedicated audio PCB layers

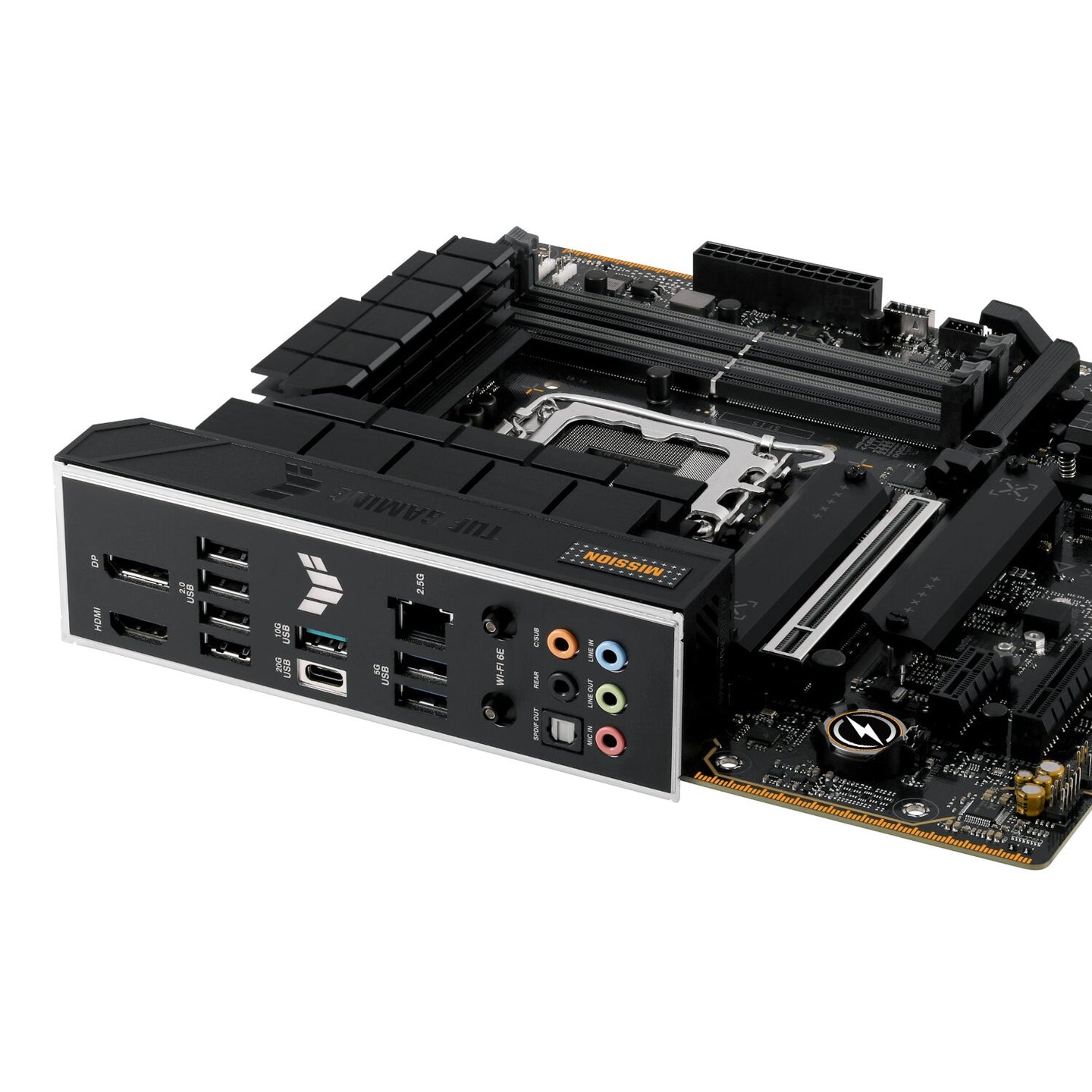

• Back Panel I/O Ports:



  • 1 x USB 20Gbps port (1 x USB Type-C®)


  • 1 x USB 10Gbps port (1 x Type-A)


  • 2 x USB 5Gbps ports (2 x Type-A)


  • 4 x USB 2.0 ports (4 x Type-A)


  • 1 x DisplayPort


  • 1 x HDMI™ port


  • 1 x Wi-Fi Module


  • 1 x Realtek 2.5Gb Ethernet port


  • 5 x Audio jacks


  • 1 x Optical S/PDIF out port






• Internal I/O Connectors:



  • I/O Connectors  Fan and Cooling related



    • 1 x 4-pin CPU Fan header


    • 1 x 4-pin CPU OPT Fan header


    • 1 x 4-pin AIO Pump header


    • 3 x 4-pin Chassis Fan headers






  • Power related



    • 1 x 24-pin Main Power connector


    • 2 x 8-pin +12V Power connectors






  • Storage related



    • 3 x M.2 slots (Key M)


    • 4 x SATA 6Gb/s ports






  • USB



    • 1 x USB 10Gbps connector (supports USB Type-C® )


    • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports


    • 3 x USB 2.0 headers support 5 additional USB 2.0 ports






  • Miscellaneous



    • 3 x Addressable Gen 2 headers


    • 1 x Clear CMOS header


    • 1 x Front Panel Audio header (AAFP)


    • 1 x 20-3 pin System Panel header with Chassis intrude function


    • 1 x Thunderbolt™ (USB4®) header










• Special Features:



  • ASUS TUF PROTECTION



    • DIGI+ VRM (- Digital power design with DrMOS)


    • ESD Guards


    • TUF LANGuard


    • Overvoltage Protection


    • SafeSlot Core+


    • Stainless-Steel Back I/O






  • ASUS Q-Design



    • M.2 Q-Latch


    • PCIe Slot Q-Release


    • Q-Antenna


    • Q-DIMM


    • Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot     Device [yellow green])






  • ASUS Thermal Solution



    • M.2 heatsinks


    • VRM heatsink design






  • ASUS EZ DIY



    • CPU Socket lever protector


    • ProCool


    • Pre-mounted I/O shield


    • SafeDIMM






  • AURA Sync



    • Addressable Gen 2 headers










• Software Features:



  • ASUS Exclusive Software


  • Armoury Crate



    • AURA Creator


    • AURA Sync


    • Fan Xpert 2+


    • Power Saving


    • Two-Way AI Noise Cancellation






  • AI Suite 3



    • DIGI+ VRM


    • PC Cleaner






  • TUF GAMING CPU-Z


  • DTS Audio Processing


  • MyASUS


  • Norton 360 for Gamers (60 Days Free Trial)


  • WinRAR (40 Days Free Trial)


  • UEFI BIOS


  • ASUS EZ DIY



    • ASUS CrashFree BIOS 3


    • ASUS EZ Flash 3


    • ASUS UEFI BIOS EZ Mode










• BIOS: 128 Mb Flash ROM, UEFI AMI BIOS


• Manageability: WOL by PME, PXE


• Operating System: Windows® 11, Windows® 10 64-bit


• Form Factor:


• Form Factor: mATX (micro-ATX)



  • Dimensions: (24.4 x 24.4 cm)

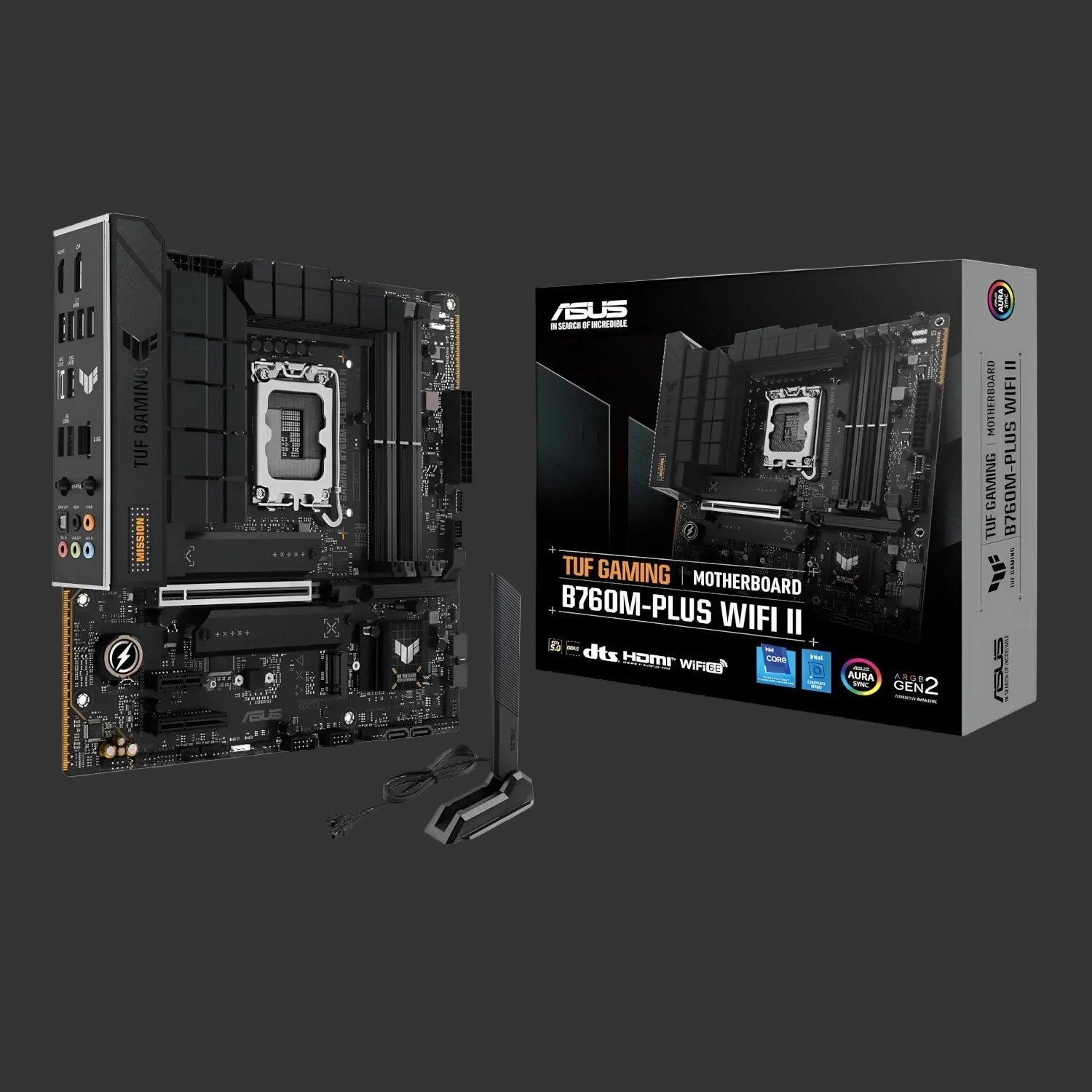

WHAT'S IN THE BOX:

• Asus TUF Gaming B760M-PLUS WIFI II - mATX Motherboard x1


• SATA 6Gb/s cables  x2

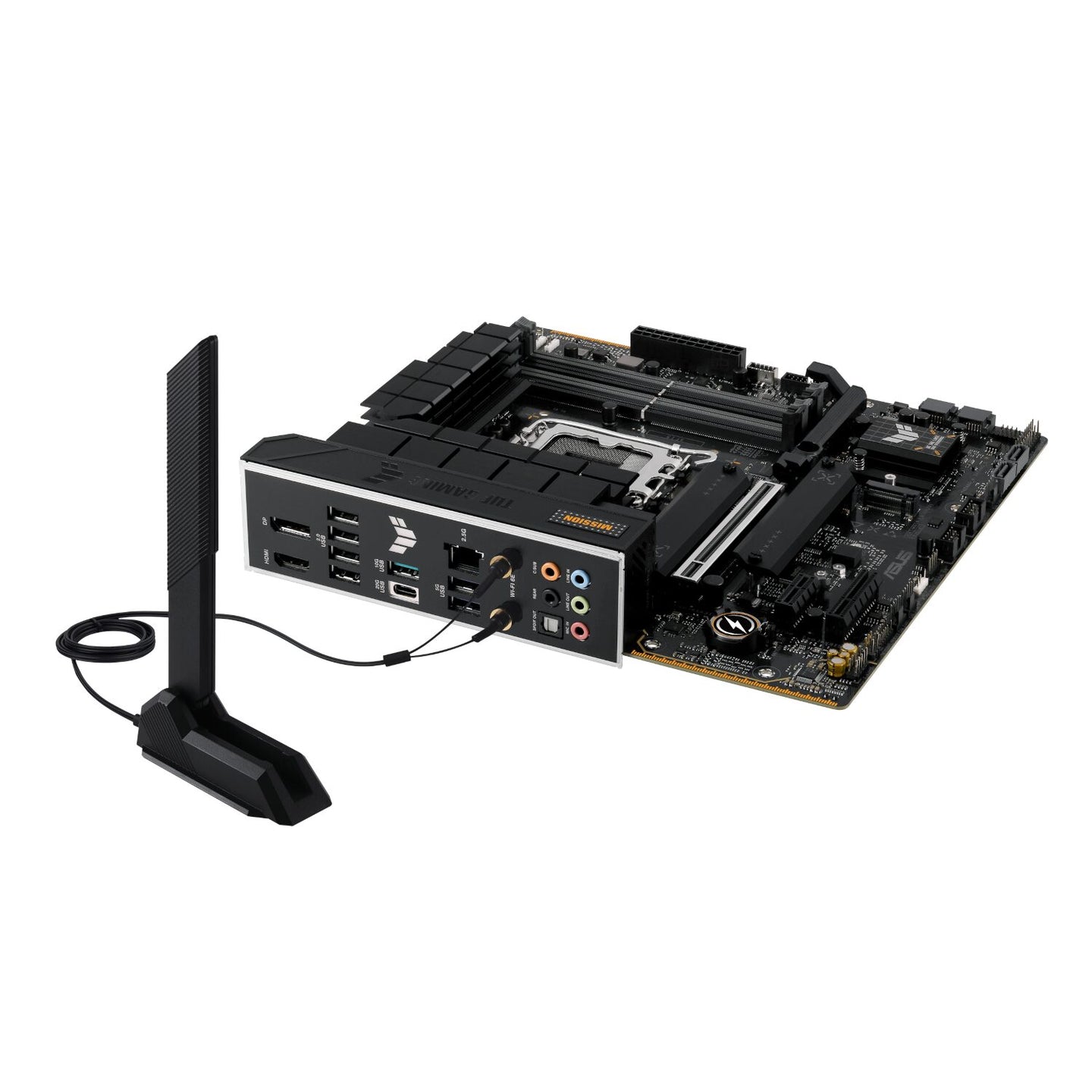

• ASUS Q-Antenna x1


• M.2 Rubber Package x1


• TUF Gaming sticker x1


• Screw packages for M.2 SSD x2


• TUF Certification card x1


• User guide x1
